INTRODUCTION \TO CONTROLLERS

Learn more about our models. It's time to take 360° Control.

OUR RANGE

Simplified, yet intelligent genset controller technology

As power generation becomes more complex, the discussions on power become much more about complete solutions rather than just individual products and our controllers give you 360°control to cover all applications - from single set standby, through paralleling systems, right up to microgrid controllers with embedded renewables. Our range of genset controllers work with all alternators and add digital synergy with our latest Mecc alte alternators.

The controllers are manufactured in Europe, come complete with a 5-year global warranty, and offers optional 5G/GPS communication for remote monitoring if needed.

We've taken the hard work out of choosing your controller.

Our controllers give you 360^o control to cover all applications - from single set standby, through paralleling systems, right up to microgrid controllers with embedded renewables.

Credit someone here…

GENSET CONTROLLERS

Suitable for single standby applications

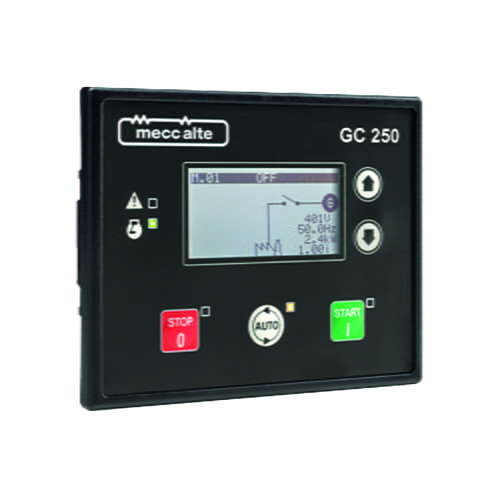

GC250

A compact AUTO-START and AMF (Automatic Mains Failure) controller for single gensets, with 3 phase mains (utility) sensing and 3 phase generator sensing and monitoring. Interfaced for traditional and J1939 engines. Configuring inputs, outputs and protections, GC250 can be easily adapted to suit a wide range of applications.

Controllers Tech Data Sheets: GC250

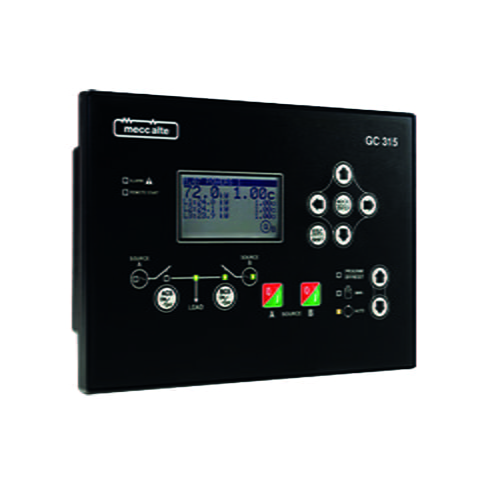

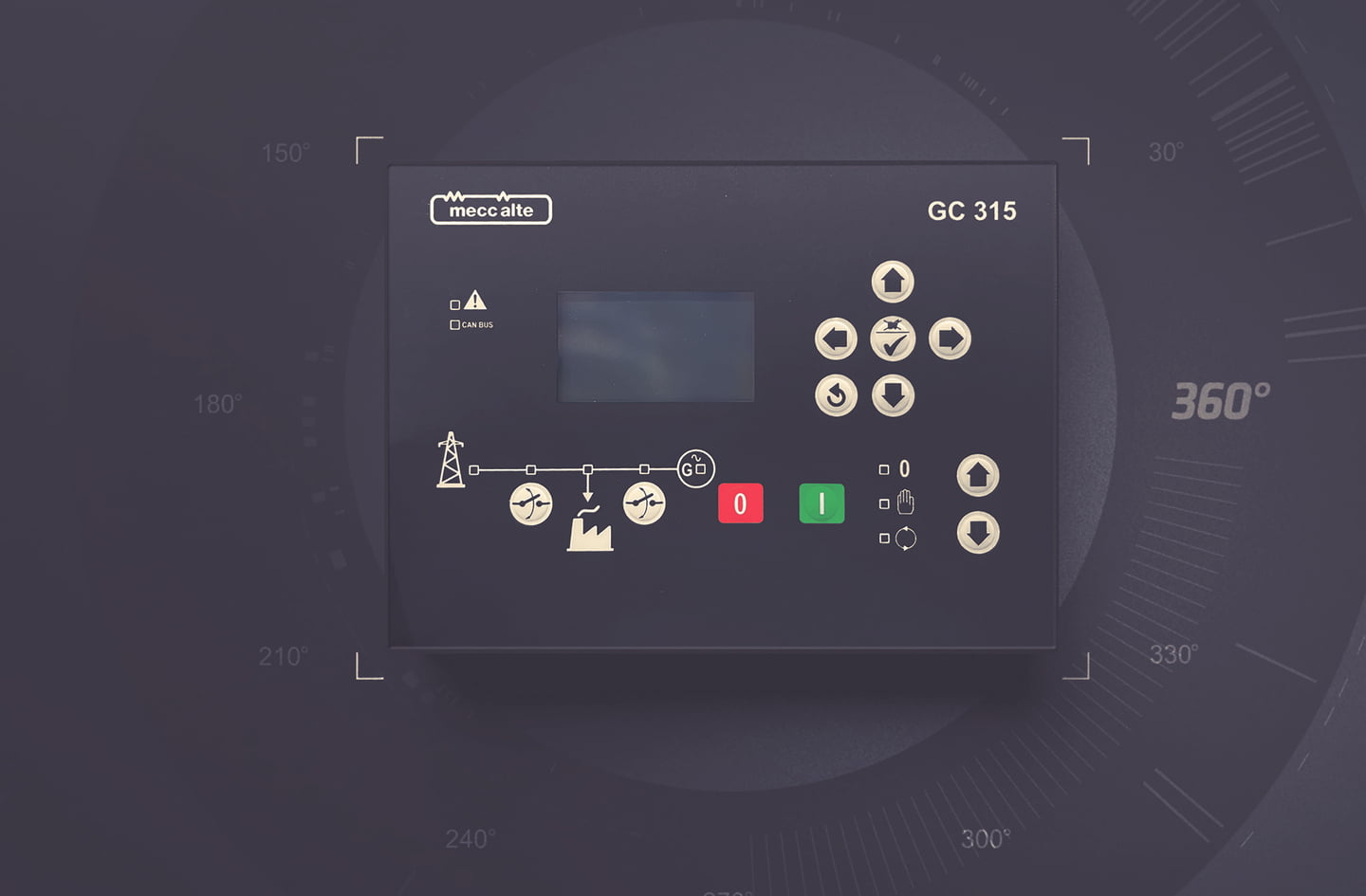

GC315 (plus and link versions available)

An extremely powerful single genset controller, with 3 phase (RMS) mains voltage and 3 phase (RMS) generator voltage and current monitoring. Optional communication interfaces with Plus and Link models.

Controllers Tech Data Sheets: GC315

PARALLEL GENSET CONTROLLERS

Suitable for use in gensets working in parallel mode for both emergency and prime power applications

GC400

The GC400 is a competitive controller ideally suited for managing different types of parallel applications, especially for MPM (Multiple Prime Mover) and MSB (Multiple Standby) power plants, where the synchronization of several gensets is required. GC400 Mains version is the perfect controller for those applications where the reverse synchronization is required to avoid any interruption to the supply to the load. As well as providing local or remote control, a version with built-in GPRS/GPS tracking (GC400 Link) is particularly suited for mobile or rental applications, where asset tracking and monitoring is required.

Controllers Tech Data Sheets: GC400

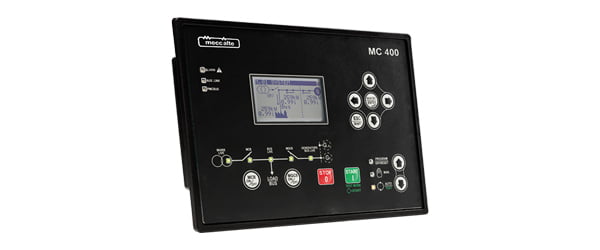

MC400

The MC400 controller is used where one or more mains supplies are required in parallel with the GC400 generator bus. The MC400 provides both mains monitoring and automatic transfer switch control functions (AMF).

Controllers Tech Data Sheets: MC400

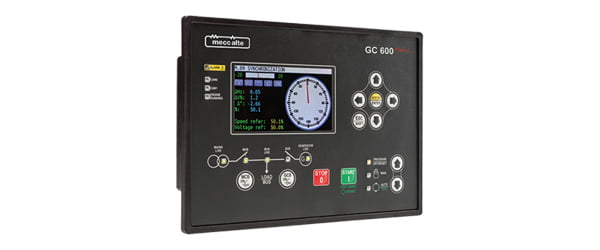

GC600

The highly capable GC600 parallel genset controller is extremely well featured for parallel applications; it includes a large PLC logic to ensure customers’ onsite application requirements can be fully met. A large full colour display makes these controllers suitable for a wide range of applications.
DNV Marine approved versions available on request.

Controllers Tech Data Sheets: GC600

PARALLEL GENSET CONTROLLERS

MC200

Designed for use where one or more mains supplies run in parallel with the generator bus. It features a powerful PLC logic to ensure site-specific design details can be accommodated. A large full colour display presents operating status in a clear, easy-to-view format. A generous input and output capability with the ability to add expansion where needed, meaning complex sites can be tackled with ease.
DNV Marine approved versions available on request

Controllers Tech Data Sheets: MC200

BTB200

A controller with the ability to control a bus tie breaker, for applications where it is necessary to divide the common bus-bars during certain operation conditions. It manages the synchronization between the two separated halves, based on an input signal, taking into account the number of gensets connected to the two halves. For complex applications, it is possible to connect on the same CANBUS up to 8 BTB200 bus tie breaker controllers, and up to 16 MC200 mains controllers and up to 16 GC600 or 24 DST4602 Evolution genset controllers.

Controllers Tech Data Sheets: BTB200

HYBRID CONTROLLERS

Designed to allow maximum penetration of renewable energy

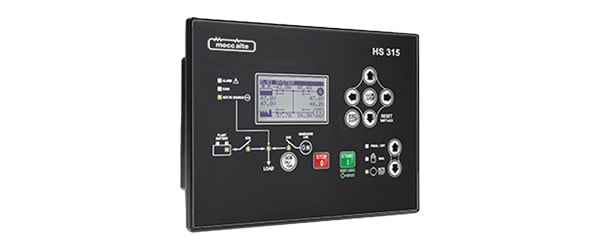

HS315

Designed to minimise generator run time and optimize both fuel consumption and running hours. HS315 features whole site DC voltages and currents, along with the ability to communicate with smart batteries. Available in HS315 and HS315 Link versions.

Controllers Tech Data Sheets: HS315

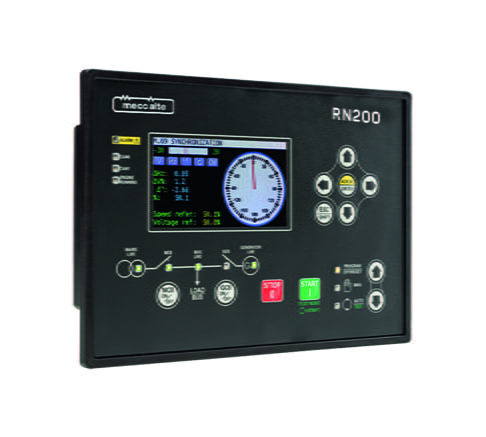

RN200

RN200 is a powerful controller designed for parallel applications including multiple gen-sets operating in parallel with a renewable energy source with or without mains supply.

Controllers Tech Data Sheets: RN200

DC CONTROLLERS

Controller for DC Lighting Tower and other DC Applications

DC250

Dedicated lighting tower functions - designed with the lighting towers applications in mind, the DC250 features dedicated functions for lamp, mast and run. With a dedicated logic memory for added flexibility and creation on user custom functions.

Controllers Tech Data Sheets: DC250

Which controller is best suited for your application ?

Genset Controller
Parallel Genset Controller
Hybrid Controller
DC Controller

DCD | Dynamic Controller Design

The Mecc Alte range of controllers are now available with a customisable controller panel which can be modified to allow you to create your own unique design by adding a logo and selecting any colour of choice. The dynamic controller design (DCD) options within the configuration tool allows you to add or delete certain elements, along with a selection of different icon sets.

Contact our sales team to discover which controller is right for you
